Sectional bend 30°
BS30X
BS30S BS30SS
BS30X
BS30S BS30SS

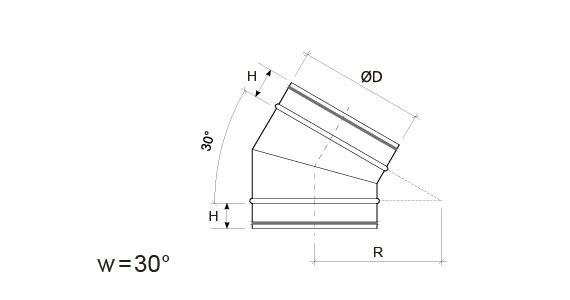

| Size | ΦD(mm) | R(mm) | H(mm) |
| 80 | 80 | 80 | 45 |
| 100 | 100 | 100 | 45 |
| 125 | 125 | 125 | 45 |
| 150 | 150 | 150 | 45 |
| 160 | 160 | 160 | 45 |
| 180 | 180 | 180 | 45 |
| 200 | 200 | 200 | 45 |
| 250 | 250 | 250 | 45 |
| 315 | 315 | 315 | 45 |
| 355 | 355 | 355 | 45 |
| 400 | 400 | 400 | 45 |
| 450 | 450 | 450 | 45 |
| 500 | 500 | 500 | 45 |
| 560 | 560 | 560 | 70 |
| 630 | 630 | 630 | 70 |
| 710 | 710 | 533 | 70 |
| 800 | 800 | 600 | 70 |
|
Galvanized steel segmented bends 30° with rubber sealing.
Radius R = 1 x D (upto Ø630), R=0.75 x D (starting from Ø710).
The airthightness class is also determined by the mounting on the construction site.
Other available products

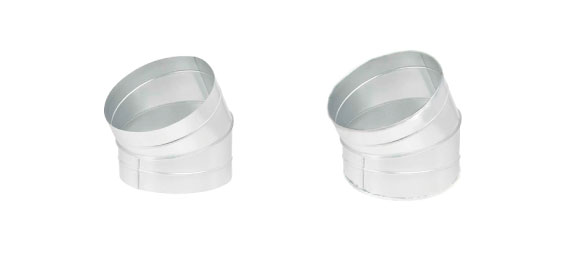

Pressed bends 30° without rubber sealing type BS30S BS30SS
|
